Introduction
Congenital fibrosis of the extraocular muscles (CFEOM) is a congenital cranial dysinnervation disorder (CCDD) characterized by non-progressive ophthalmoplegia and ptosis resulting from abnormal development of the oculomotor or trochlear nerves (Wang et al., 1998; Yamada et al., 2004). Among the CFEOM phenotypes, CFEOM type 3 (CFEOM3) is a rare, dominantly inherited form of congenital restrictive ophthalmoplegia. CFEOM3 represents a clinically prominent and genetically heterogeneous form, notable for marked phenotypic variability and asymmetric neurological and anatomical involvement, which complicates clinical classification (Engle et al., 2002; Traboulsi, et al., 2000; Yamada et al., 2003). In some pedigrees, the phenotype segregates with full penetrance (Mackey et al., 2002), whereas in others it may show probable incomplete penetrance (Doherty et al., 1999).
Early clinical descriptions emphasized congenital limitation of eye movements associated with variable ptosis, frequent interocular asymmetry, and relative preservation of horizontal gaze in some affected individuals (Gillies, et al., 1995). Linkage studies subsequently mapped the disease locus to chromosome 16q24.3 (Doherty et al., 1999; Mackey et al., 2002). Subsequent molecular studies of CFEOM3A identified mutations in TUBB3, which encodes the neuron-specific β-tubulin isotype III, a critical component of microtubules involved in axon guidance, neuronal connectivity, and cranial nerve development (Chew et al., 2013; Tischfield et al., 2010). Neuroimaging and experimental investigations subsequently revealed abnormalities of oculomotor nerve development and broader axon guidance defects, placing CFEOM3 within the wider group of CCDDs rather than a purely ocular motility disorder (Tischfield et al., 2010).
Pathogenic TUBB3 variants are associated with a wide phenotypic spectrum, ranging from isolated congenital ophthalmoplegia to combined ocular and neurodevelopmental abnormalities with variable neuroimaging findings. Notably, base substitutions affecting conserved residues, including p.Arg62Gln, p.Arg262Cys, p.Ala302Thr, and p.Asp417Asn, produce distinct yet overlapping clinical manifestations, underscoring the variable genotype–phenotype correlations characteristic of TUBB3-related CFEOM3 (Chew et al., 2013; Tischfield et al., 2010).
In this study, we report an Iranian family with autosomal dominant CFEOM3A in which a heterozygous TUBB3 missense variant, c.784C>T (p.Arg262Cys, R262C), was identified and demonstrated to cosegregate with the disease phenotype. This report, to our knowledge, provides the first detailed clinical, genetic, and neuroimaging characterization of a TUBB3-related CFEOM3 family from Iran, confirming the phenotypic spectrum associated with the c.784C >T variant.

Materials and Methods
Subjects and clinical assessment
A large multigenerational family originating from the central region of Iran, exhibiting a hereditary disorder of extraocular eye movement, was ascertained for this study. In total, 28 family members demonstrated clinical manifestations of the condition. Both affected individuals and available unaffected relatives from each generation were enrolled, and demographic information, including age, sex, and detailed clinical features, was systematically documented.
The study was conducted in accordance with the principles of the Declaration of Helsinki and received approval from the Ethics Committee of the Neuroscience Research Center. Written informed consent was obtained from all participants before their inclusion. Comprehensive ophthalmologic assessments were performed at Shahid Labbafi Nedjad Educational Hospital. In contrast, genetic analyses and related investigations were carried out at the Neuroscience and Cognitive Sciences Research Center, Shahid Beheshti University of Medical Sciences.

Ophthalmologic and neuroimaging evaluation
Comprehensive ophthalmologic examinations were performed in all affected family members. These evaluations included assessment of refractive errors, amblyopia, eyelid position and function, pupillary light reflexes, extraocular muscle motility, and the type and severity of strabismus. Forced duction testing was conducted to assess mechanical restriction, and levator palpebrae superioris muscle function was specifically evaluated in individuals presenting with ptosis. Ptosis was observed in all affected participants.
Cranial magnetic resonance imaging (MRI) was obtained for two affected individuals, one with bilateral CFEOM3A and one with unilateral CFEOM3A, to characterize associated neuroanatomical features further. MRI protocols included acquisition of coronal and axial T1‑weighted sequences and axial T2‑weighted images, enabling detailed assessment of the basal ganglia, commissural pathways, and midline brain anatomy. Due to logistical constraints, additional family members were not imaged.
All MRI studies were conducted at the National Brain Mapping Laboratory (NBML) on a 3‑Tesla MRI scanner using standardized clinical imaging protocols. Neuroimaging evaluation focused on the morphology of the basal ganglia, visualization of the anterior commissure at its expected anatomical level, and assessment of corpus callosum development. Comparative analyses were performed between the 2 imaged individuals to evaluate inter‑individual variability in neuroanatomical findings in relation to unilateral versus bilateral CFEOM involvement.

Genetic analysis
Peripheral blood samples were collected in EDTA (ethylenediaminetetraacetic acid)-containing tubes, and genomic DNA was extracted from leukocytes using the standard salting-out method (Miller et al., 1988). Whole-exome sequencing (WES) was performed on genomic DNA obtained from the proband using the Illumina HiSeq 2500 platform (Illumina, San Diego, CA, USA).
Bioinformatic analysis focused on chromosomal regions and genes previously implicated in CCDDs, identified c.784C>T (R262C) in exon 4 of TUBB3 (reference transcript NM_006086).
The candidate variant was validated by polymerase chain reaction (PCR) amplification followed by Sanger sequencing using specific primers (forward: 5′-GGAGTCACCACCTCCTTGC-3′; reverse: 5′-CCATCATGTTCTTGGCATCG-3′). Segregation analysis was performed in available family members to assess co-segregation of the variant with the disease phenotype.

Results
Clinical findings
Comprehensive ophthalmologic evaluation of affected family members revealed common characteristics of CFEOMs, including ptosis (unilateral in some individuals and bilateral in others), hypotropia with restricted upgaze, chin-up posture, and exotropia with restricted horizontal gaze. Affected individuals were unable to elevate one or both eyes above the horizontal midline and exhibited limited function of the lateral and inferior rectus muscles (Figure 1).



Based on ophthalmologic findings alone, the clinical presentation showed substantial overlap between clinical features traditionally attributed to CFEOM1 and CFEOM3, making a reliable clinical distinction between these subtypes challenging. However, limited supraduction movement observed in some patients is compatible with CFEOM3. None of the patients reported any progressive worsening of ocular manifestations.

Genetic analysis

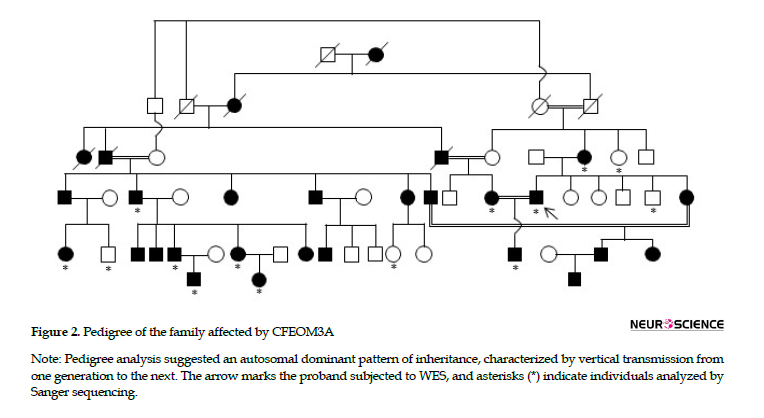

Pedigree analysis demonstrated an autosomal dominant inheritance pattern for the disease phenotype (Figure 2). WES of the proband identified a heterozygous missense variant, c.784C>T (R262C), in exon 4 of the TUBB3 gene on chromosome 16q24.3, corresponding to the known CFEOM3A locus. Segregation analysis using Sanger sequencing confirmed the presence of this variant in all affected family members and its absence in all tested unaffected family members (Figure 3).






Neuroimaging findings
Brain MRI was performed in 2 closely related affected individuals: patient 1 with bilateral CFEOM3A and patient 2 with unilateral CFEOM3A, revealing variable but largely overlapping neuroanatomical findings.
Both patients demonstrated asymmetric basal ganglia morphology, predominantly involving the caudate nucleus and putamen. These alterations were bilateral and more pronounced in the left hemisphere in both patients (Figures 4A1, 4B1, 4C1, 4A2, 4B2, and 4C2).
Evaluation at the expected anatomical level of the anterior commissure showed the absence of a visible anterior commissure in the bilateral CFEOM3A case. In contrast, a thin but identifiable anterior commissure was present in the unilateral CFEOM3A case (Figures 4D1, 4E14, 4D2, and 4E2).
Midline sagittal imaging revealed corpus callosum dysgenesis in both patients. The unilateral CFEOM3A patient showed slightly greater involvement of the body of the corpus callosum than the bilateral case; however, this difference was not radiologically significant. Notably, despite the differences in ocular phenotype, no meaningful differences in overall cerebral involvement were observed (Figures 4F1 and 4F2).



Discussion
CFEOM type 3 (CFEOM3) is a genetically and phenotypically heterogeneous form of CCDD most commonly associated with heterozygous missense variants in the TUBB3 gene, which encodes the neuron-specific β-tubulin isotype III (Tischfield et al., 2010). βIII-tubulin plays a critical role in microtubule assembly and dynamics, axon guidance, and neuronal migration during neurodevelopment (Tischfield et al., 2010). Pathogenic TUBB3 variants disrupt microtubule function, occasionally impair interactions with kinesin motor proteins, and result in abnormal cranial nerve development and defective extraocular muscle innervation (Tischfield et al., 2010).
In the present study, we identified a heterozygous TUBB3 variant, c.784C>T (R262C), segregating with disease in an autosomal dominant manner across multiple generations in a large Iranian family. Clinically, affected individuals exhibited congenital ptosis, severe vertical gaze limitation, and variable involvement ranging from unilateral to bilateral CFEOM3A, consistent with the broad phenotypic spectrum previously reported for TUBB3-related CFEOM3 (Ceylan et al., 2017; Chew et al., 2013; Tischfield et al., 2010).
The penetrance of the disease allele could not be formally evaluated due to the lack of systematic assessment of all unaffected family members. However, the biochemical consequences of replacing arginine at position 262 (p.Arg262Cys) with cysteine are expected to disrupt the electrostatic and structural properties of βIII-tubulin, potentially impairing microtubule dynamics and axon guidance, and contributing to the observed disease phenotype. This interpretation is supported by the loss of a positively charged arginine residue and the introduction of a reactive thiol group by cysteine, changes predicted to affect tubulin folding and function adversely. Collectively, these considerations suggest that the c.784C>T (R262C) variant is likely to exhibit high, and possibly complete, penetrance.
Neuroimaging in our cohort further supported the diagnosis of CFEOM3A and demonstrated variable central nervous system involvement. In both unilateral and bilateral patients examined by neuroimaging, basal ganglia involvement was observed, and abnormalities of the anterior commissure were present despite differences in ocular phenotype. These largely overlapping neuroanatomical findings suggest that central nervous system perturbations are a consistent feature of TUBB3-related CFEOM3A. Such observations are in line with prior reports describing corpus callosum dysgenesis, basal ganglia abnormalities, and commissural defects in TUBB3-associated disorders (Chew et al., 2013; Poirier et al., 2010; Tischfield et al., 2010; Tischfield & Engle, 2010), and further support the concept of variable expressivity in this condition.

Conclusion
Taken together, our findings expand the phenotypic and neuroimaging spectrum associated with the TUBB3 variant (c.784C>T, R262C) and highlight the variable expressivity observed in CFEOM3A. This study underscores the critical value of integrating detailed molecular genetic analysis with comprehensive clinical and neuroimaging assessments to achieve accurate diagnosis and inform effective genetic counseling in families affected by CCDDs.

Ethical Considerations
Compliance with ethical guidelines
This study was approved by the Research Ethics Committee of the Neuroscience Research Center, Shahid Beheshti University of Medical Sciences, Tehran, Iran (Code: IR.SBMU.PHNS.REC.1400.172). Written informed consent was obtained from all participants before their inclusion.

Data availability
The datasets used and analyzed during the current study are available from the corresponding author upon reasonable request.
Declaration of generative AI and AI-assisted technologies in the writing process
No AI tool influenced the scientific content, data analysis, or conclusions of this work.

Funding
This research did not receive any grant from funding agencies in the public, commercial, or non-profit sectors.

Authors' contributions
Conceptualization: Noor M Ghiasvand and Fatemeh Sadat Rashidi; Methodology: Fatemeh Sadat Rashidi, Ehsan Ahmadipour, Afagh Alavi, Hamed Javadian, Abbas Bagheri, Motahhareh Sadeghi, and Setareh Shomali; Investigation: Fatemeh Sadat Rashidi, Ehsan Ahmadipour, Afagh Alavi, Hamed Javadian, and Parisa Azimi; Writing the original draft: Fatemeh Sadat Rashidi and Noor M Ghiasvand; Review, and editing: Noor M Ghiasvand and Parisa Azimi; Funding acquisition: Nader Maghsoudi and Fatemeh Sadat Rashidi; Resources: Fatemeh Sadat Rashidi, Motahhareh Sadeghi, and Hamed Javadian; Supervision: Noor M Ghiasvand.

Conflict of interest
The authors declared no conflict of interest.

Acknowledgments
The authors sincerely thank the patients and their families who willingly participated in this study and cooperated throughout all stages of clinical and genetic evaluations. The authors also thank Abolhasan Ahmadiani, Director of the Neuroscience Research Center, Institute of Neuroscience and Cognition, Shahid Beheshti University of Medical Sciences, for providing the essential laboratory, administrative, and operational facilities required for this study. The authors acknowledge the National Brain Mapping Laboratory (NBML) for performing the neuroimaging studies and Farabi Eye Hospital for granting access to patients’ past medical records. Finally, we extend our sincere appreciation to Fatemeh Abbaszadeh, faculty member at Shahid Beheshti University of Medical Sciences, for her continuous support and encouragement.

References
Ceylan, A. C., Gursoy, H., Yildirim, N., Basmak, H., Erol, N., & Cilingir, O. (2017). Clinical heterogeneity associated with TUBB3 gene mutation in a Turkish family with congenital fibrosis of the extraocular muscles. Ophthalmic Genetics, 38(3), 288–290. [DOI:10.1080/13816810.2016.1193881] [PMID]
Chew, S., Balasubramanian, R., Chan, W. M., Kang, P. B., Andrews, C., & Webb, B. D., et al. (2013). A novel syndrome caused by the E410K amino acid substitution in the neuronal β-tubulin isotype 3. Brain: A Journal of Neurology, 136(Pt 2), 522–535. [DOI:10.1093/brain/aws345] [PMID]

Doherty, E. J., Macy, M. E., Wang, S. M., Dykeman, C. P., Melanson, M. T., & Engle, E. C. (1999). CFEOM3: A new extraocular congenital fibrosis syndrome that maps to 16q24.2-q24.3. Investigative Ophthalmology & Visual Science, 40(8), 1687–1694. [PMID]
Engle, E. C., McIntosh, N., Yamada, K., Lee, B. A., Johnson, R., & O'Keefe, M., et al. (2002). CFEOM1, the classic familial form of congenital fibrosis of the extraocular muscles, is genetically heterogeneous but does not result from mutations in ARIX. BMC Genetics, 3, 3. [DOI:10.1186/1471-2156-3-3] [PMID]
Gillies, W. E., Harris, A. J., Brooks, A. M., Rivers, M. R., & Wolfe, R. J. (1995). Congenital fibrosis of the vertically acting extraocular muscles. A new group of dominantly inherited ocular fibrosis with radiologic findings. Ophthalmology, 102(4), 607–612. [DOI:10.1016/S0161-6420(95)30977-3] [PMID]
Mackey, D. A., Chan, W. M., Chan, C., Gillies, W. E., Brooks, A. M., & O'Day, J., et al. (2002). Congenital fibrosis of the vertically acting extraocular muscles maps to the FEOM3 locus. Human Genetics, 110(5), 510–512. [DOI:10.1007/s00439-002-0707-5] [PMID]
Miller, S. A., Dykes, D. D., & Polesky, H. F. (1988). A simple salting out procedure for extracting DNA from human nucleated cells. Nucleic Acids Research, 16(3), 1215. [DOI:10.1093/nar/16.3.1215] [PMID]
Poirier, K., Saillour, Y., Bahi-Buisson, N., Jaglin, X. H., Fallet-Bianco, C., & Nabbout, R., et al. (2010). Mutations in the neuronal ß-tubulin subunit TUBB3 result in malformation of cortical development and neuronal migration defects. Human Molecular Genetics, 19(22), 4462–4473. [DOI:10.1093/hmg/ddq377] [PMID]
Tischfield, M. A., Baris, H. N., Wu, C., Rudolph, G., Van Maldergem, L., & He, W., et al. (2010). Human TUBB3 mutations perturb microtubule dynamics, kinesin interactions, and axon guidance. Cell, 140(1), 74–87. [DOI:10.1016/j.cell.2009.12.011] [PMID]
Tischfield, M. A., & Engle, E. C. (2010). Distinct alpha- and beta-tubulin isotypes are required for the positioning, differentiation and survival of neurons: New support for the 'multi-tubulin' hypothesis. Bioscience Reports, 30(5), 319–330. [DOI:10.1042/BSR20100025] [PMID]
Traboulsi, E. I., Lee, B. A., Mousawi, A., Khamis, A. R., & Engle, E. C. (2000). Evidence of genetic heterogeneity in autosomal recessive congenital fibrosis of the extraocular muscles. American Journal of Ophthalmology, 129(5), 658–662. [DOI:10.1016/S0002-9394(99)00467-5] [PMID]
Wang, S. M., Zwaan, J., Mullaney, P. B., Jabak, M. H., Al-Awad, A., & Beggs, A. H., et al. (1998). Congenital fibrosis of the extraocular muscles type 2, an inherited exotropic strabismus fixus, maps to distal 11q13. American Journal of Human Genetics, 63(2), 517–525. [DOI:10.1086/301980] [PMID]
Yamada, K., Andrews, C., Chan, W. M., McKeown, C. A., Magli, A., & de Berardinis, T., et al. (2003). Heterozygous mutations of the kinesin KIF21A in congenital fibrosis of the extraocular muscles type 1 (CFEOM1). Nature Genetics, 35(4), 318–321.[DOI:10.1038/ng1261] [PMID]
Yamada, K., Chan, W. M., Andrews, C., Bosley, T. M., Sener, E. C., & Zwaan, J. T., et al. (2004). Identification of KIF21A mutations as a rare cause of congenital fibrosis of the extraocular muscles type 3 (CFEOM3). Investigative Ophthalmology & Visual Science, 45(7), 2218–2223. [DOI:10.1167/iovs.03-1413] [PMID]
